For Sale: Swan 36 - ARC ANGEL

ModelSwan 36
Hull Number113
LOA36 ft 0 in
Beam12 ft
Draft6.92 ft
Displacement14800 pounds
Ballast5600 pounds
KeelFin keel
PriceUSD 180,000

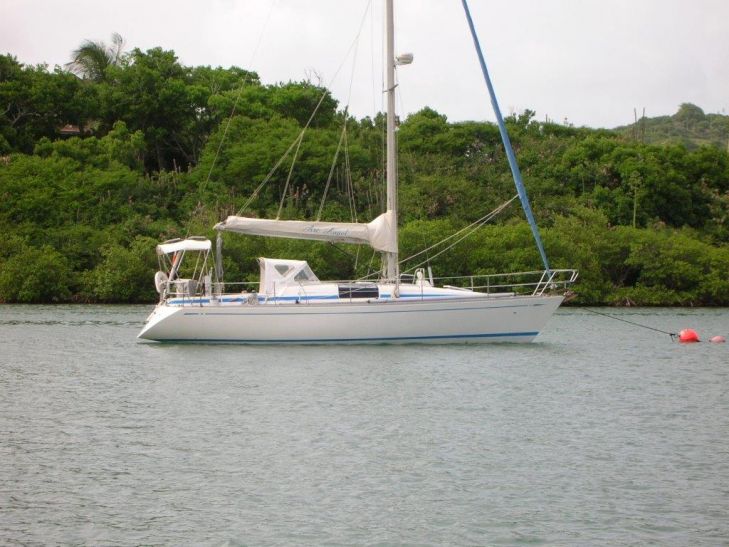

Despite being one of smallest SWAN's Nautor of Finland has built, this German Frers SWAN 36, hull number 113, is no less capable when it comes to ocean sailing. She was the first boat to complete the ARC with an all female crew. Now docked in Antigua, ARC ANGEL has been lovingly cared for with no expense spared. In 2012, ARC ANGEL under went a comprehensive refit including new teak decks, new Yanmar engine, new electronics and onboard equipment. Please review the Full Specifications for details. Not only is ARC ANGEL a wonderful cruising boat, but she has also proven herself on the racing circuit winning in Antigua Race Week.

*** Photo Gallery removed in Print View - See it online at ***


Solid fiberglass hull.

White gel coat.

Swan blue waterline and sheer stripes.

Dark blue antifouling.

DeepSee 712-019-001-DA Underwater flood lights, 2 aft in blue, 1 forward of keel in white, fully dimmable and with strobe effect to attract fish.

Fin keel.

Spade rudder.

*** Photo Gallery removed in Print View - See it online at ***


Cored fiberglass deck with teak over the side decks and in the cockpit.

New teak deck was fitted in September 2012.

White gel coat on all exposed fiberglass and blue coaming stripe.

Stainless steel bow rail with teak seat.

Stainless steel stern rail with gate and 2 teak seats.

Outboard bracket and dinghy tow bars on stern rail.

Fold down stainless steel transom swim ladder with teak steps.

Stainless steel stem head fitting with bow roller.

Spacious cockpit locker with lockable stainless steel latches.

Anchor locker with flush mounted Jabsco Ultra 7 high pressure anchor washdown pump accessible from a deck hatch in the forepeak.

Lewmar electric windlass with up switch and separate remote control.

35LB CQR anchor.

55LB Kobra anchor.

Fortress FX23 anchor.

200 feet of 10mm galvanized chain (new 2012)

100 feet of rode.

Double lifelines made of Dyna 1.

Lifeline gate on Starboard side,.

Wheel steering with elkhide on wheel.

Dorade vent with mushroom vent and 12 volt outlet.

Bimini (new 2012)

Dodger (new 2012).

"D" hooks for jack lines.


2 x Holmatro #44, 2 speed, ST, primary (new 2012)

2 x Anderson #46, 2 speed, ST, secondaries.

4 x Lewmar #40, 2 speed, ST, halyard and utility.

*** Photo Gallery removed in Print View - See it online at ***



Sleeps 4 in 2 sleeping cabins, plus 2 more in the main saloon. 1 Head. Burmese teak furniture throughout. Teak interior was refurbished with new varnish work in September 2012.


Double berth with hatch overhead. Aft to starboard is a large double hanging locker with small hatch overhead. Air conditioned with inline UV filter. Custom storage locker with 3 waterproof Pelican document file cases underneath bed. Luxury Marine Pocket Sprung and Foam Mattresses with DryMesh anti-moisture layer. Frensch F4 LED Red/White task light.


Aft of the forward cabin and to port is an enclosed head with manual Lavac vacuum head, sink, hot and cold pressure water, shower, and lockers. Small hatch overhead. Access doors to the head from the main saloon and forward cabin.


Straight settee to port and to starboard. New upholstery in 2005. Lockers outboard both sides. Fixed table on the centerline with folding leaves both sides. Battery storage inside the center of the table. Large hatch over the table and 4 x large tinted Lexan windows. 4 x additional LED Cantalupi lights, model Nubia in chrome plated brass. Elk hide chain-plate covers. Forward cabin air conditioning also cools main saloon. Concealed RGB LED strip lights on both sides of the cockpit with remote control that allows for full ambient lighting effects including "rigged for red" when sailing at night.


Aft of the starboard settee. outboard facing chart table with Frensch F4 LED Red/White task lighting.


"L" shaped, port side, opposite the naviagation station. Force 10 propane stove with oven. Double stainless steel sink with pressure hot and cold water, and fresh drinking water from Watermaker under sink. Hot water provided by engine heat exchanger and 220 volt electric immersion heater. Frigoboat refrigerator with keel mounted heat exchanger (new 2012). Opening port to cockpit. Companionway is between the galley and the navigation station. Engine access is under the companionway stairs.


Located aft of the navigation station. Double berth with filler. Luxury Marine Pocket Sprung and Foam Mattresses with DryMesh anti-moisture layer. Storage lockers. 2 opening ports to cockpit, Frensch F4 LED Red/White task light.

*** Photo Gallery removed in Print View - See it online at ***


12volt system.

230volt, 50Hz system.

Yanmar KMG65 transmission driven 3 KW generator.

110volt and 240volt outlets throughout interior.

Talon systems powered mounts in cockpit to accept all Talon accessories.

All lights are LED.

Yanmar 80amp alternator.

3 x 8D house battery.

Link 10 battery monitor.

Separate remote start battery pack for emergency engine start power.

Adverc MG12L2AB twin battery visual alarm and buzzer.


Most electronics were replaced with new in 2012.

Furuno MFD12 NavNet 3D 12" dIsplay at nav station.

Furuno MFD8 NAvNet 3D 8" display with weatherproof mounting pod at helm.

MaxSea time zero explorer MAXSEA EXPLORER navigation software.

MaxSea module Caribbean vector and raster chart package.

MaxSea V908MAP4.1 navionics vector.

MaxSea R908MAP2.2 raster.

MaxSea WVJNAM027MAP1.2 Jeperson vector.

Furuno DRS2D 2.2KW Radome.

Furuno FAX30 weather fax with whip antenna.

Furuno FAX5 allows display of fax on NavNet3D screens.

Furuno HUB101 network hub.

Furuno FI-501-30E wind system.

Furuno FI-502E close hauled display.

Furuno FI-504 multi display.

Furuno FI-505E course display.

2 x Furuno FI-507 multi XL display.

Furuno DST800 transducer.

Furuno FI-5002 junction box.

Furuno NAV611 autopilot.

Furuno PG500 compass.

Furuno GP32 GPS antenna.

Icon IC-M505 VHF DSC radio, grey.

Icom HM-162E external cockpit radio microphone and control.

Simrad HLD350 MK2S hydraulic drive for autopilot.

Vesper marine AIS watchmate separate AIS monitor.

Weems & Plath digital barometer.

Easy AIS transmitter.

Easy AIS splitter to use VHF mast top antenna.

Easy AIS GPS to transmit GPS coordinates.

SeeSea TV IM-DND60 onboard bow camera.

SeeSea TV IM-DND60 onboard spreader camera.

Aqua Luma-Vu Seateach through hull underwater camera (PAL video spec version).

Ultrasonic antifouling system.

Frigoboat digital refrigerator monitoring and control panel.

Yachtspot 5 Marine WiFi unit with 2.4Ghz WiFi Antenna and WiFi router.


Yanmar 3JH5E (new 2012) - Total 39 HP

3 x blade feathering Maxprop 21" with rope cutter


Aluminum mast painted white.

Aluminum boom painted white.

Aluminum spinnaker pole with track on mast and line driver.

Aluminum strut.

Stainless steel rod rigging (new 2012)

Aluminum shroud protectors.

1 x 19 wire stainless steel checkstays.

Navtec hydraulic backstay and boom vang.

Reckmann headsail roller furling (new refurbished 2012)

Harken mainsail traveler

6 x purchase main sheet with 24 x fine adjuster.

All Dynema and Spectra control lines (2012).

Jib sheets controlled through adjustable barber hauler with Equiplight carbon blocks.

Lazy jacks.

Mainsail cover.

Boot at mast.


North full batten Dacron Radian mainsail with 2 x reefs (new 2012)

North furling Dacron Radian genoa with vertical battens and furling luff pad (new 2012)

North Norlon FG2 gennaker with snuffer (new 2012)


Katadyne Power Survivor 160E watermaker with silt reduction kit, 25 liters per hour, 12volt.

Dometic VTD 16K self contained air conditioner with smart start power controller, inline UV filter for saloon and forward cabins.

Alpine iDA-X100M marine radio with MC10 and KCE-422i remote control accessories.

Alpine speakers in cockpit.

Pioneer speakers in saloon.

Force 10, LPG, BBQ grill.

Removable cockpit table.

Dock lines.

Fenders with dark blue covers.

Cockpit cushions.

Stainless steel dodger (new 2012).

Stainless steel bimini (new 2012).

Stainless steel Ionic fuel and water caps with waterproof magnetic locks.

All hardware such as hinges, door handles and clothing hooks in 316 Stainless Steel (replaced with new 2012).


Solas ORC Category 3 Flare kit.

ACR GlobalFixTM iPro 40628460 EPIRB. Category I Rescue Beacon with Auto-Release Bracket, Built-in GPS, and LED Status Display.

Givens 6 person deluxe life raft in a valise, fits in lazarette.

Emergency Grabkit in waterproof bag with: 2 x solar watermakers OSSUR0450, Box of pecils, Tin of assorted length and strength rubber bands, Assorted fishhooks and lines, Daiwa Wilderness Aquadry Fish Net 60 cm, Bag of assorted rags, cord and string, Repair kit for raft - Polymarine hypalon repair kit ML31.99.10G, 12 tins of spare water -Water rations available in 1/2 litres (4 x 125ml sachets), OSSUR0040, Blocks of high energy concentrated fruit jellies - Glucose rations - Barley Sugar OSSUR0065, 2 x LED Lenser - Frogman Power Chip in Neon, 1 x ARC Firefly Plus - floating strobe and flashlight - Waterproof but torch not LED, Knife Gerber River- Shorty Multitool Gerber flik, Sewing Kit, 2 pairs of Diving Gloves, Compass Plastimo Iris 50 yellow PL23117, Imray Plastic charts - 1x large area Atlantic/Caribbean and 1x Eastern Caribbean, Whistle - orange plastic, Plastic Signalling Mirror with small hole in middle (the hole helps you aim the reflection of the sun) PL16193.

Horseshoe life ring with light and drogue.

6 x Crewsaver life jackets with 3 point safety tethers.

Race rescue knife mounted at helm.


Fireboy CG2-075-FE241 automatic fire extinguisher system in engine compartment.

Emergency Fuel Cut-off toggle in cockpit

2 x fire extinguishers in forward and aft cabins.

Fire blanket in galley.

Emergency tiller.


2 X manual bilge pumps.

2 x electric bilge pump.

Jabsco pressure pump with hot and cold mixer faucet in aft lazarette for cockpit shower.

2 Water tanks (1 starboard and 1 port) for 132 gallons


Builder: Nautor

Designer:German Frers

HIN: #113

Hull Shape: Monohull

Hull Material: Fiberglass

Number of Engines: 1

Fuel Type: Diesel

LOA: 36.58ft.

LWL: 39.42ft.

Beam: 12ft.

Draft: 6.92ft.

Displacement: 14,800lbs

Ballast: 5,600lbs
