Swan 68 - Irvmiren - Sold by Yeoman Yachts
|LOA||68 ft 0 in|
|Asking Price||USD 495,000|

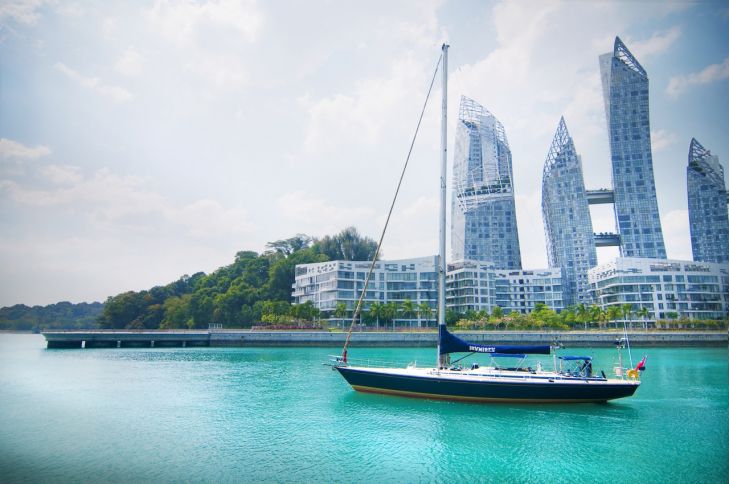

IRVMIREN was designed by German Frers and offers elegance and comfort for both living and entertaining. She is a true cruiser/racer with fantastic offshore sailing performance!
In 2000 her main engine was replaced with a more powerful 225HP Perkins Engine. IRVMIREN had an extensive refit in 2004 with the following work completed: replacement of teak deck and all teak fittings with 14mm Burmese teak; replacement of generator; the waterline sheer stripes repainted; re-varnishing of the entire interior woodwork and additional sound insulation was added to the generator set.
Another refit was made in 2010 at which time a bench was built in the master cabin. All lighting was changed to LED; all light switches were replaced; full re-varnishing; and a new generator was installed.
An electrical refit was completed in 2014. A cosmetic refit was completed in May 2017 including new Awlgrip hull paint, new hatch lenses, refurbished teak deck, and fully detailed interior.
IRVMIREN is in great condition and has been maintained by a professional crew since new. She had been sailing in SE Asia and the Pacific until April 2014 when she arrived in the USA. She has been competitively raced and won a number of regattas including the 1998 Kings Cup, 2002 Raja Muda Race, and the 2003 Singapore Straits Regatta.
Please call to make an appointment to see her. She will be in New England this summer.
She has a solid fiberglass hull painted Navy Blue Awlgrip.
Hydraulic swim platform with teak.
Swim platform ladder is combined with a bathing/side boarding and forepeak ladder.
Antifouling, red, Jotun for 3 years in the water.
Standard racing keel.
Ballast is cast lead allyed with antimony.
The mast is stepped through the deck onto a mast step with a movable shoe for mast rake adjustment.
Teak deck replaced in 2004 in solid Burmese 14mm teak.
Teak toe rail.
Steering wheel covered with leather.
Anchor mounted on stemhead: Sand anchor, glavanized.
Chain m 220m
Stainless Steel stemhead fitting with 2 chain rollers
Stainless Steel lifelines with 1 opening gate and stanchions amidships on both sides.
Open bowrail with teak seat.
Bow sprit for assymetrical sail.
Deck fittings for spinnaker pole and jockey pole.
Aluminum mast collar bolted through deck.
Stowage for 2 gas bottles in aft cockpit seat
Gate in the stern rail for the bathing platform.
Stern rail has a socket for a flag pole
Stern rail has auxiliary engine support
Stainless steel radar post mounted through deck, removable and with quick connection for the cable.
Deck shower, hot and cold water.
Extended transom with large lasarette for storage of equipment
Harken- hydraulic winches overhauled in 2010 including the primarywinches, secondary winches, mainsheet, 2 halyard winches.
Electric windlass for anchor.
IRVMIREN sleeps 11 in 5 separate cabins. Sleeps an additional 2 on the main saloon settees for a total of 13. 4 heads. Burmese teak interior woodwork with varnished hand rubbed finish except where noted. Teak and holly foam cored cabin sole floor boards throughout.
FOREPEAK CABIN Located immediately aft of the deck accessed anchor and chain locker. Watertight bulkhead forward. Single bunk starboard. Large locker to port. Large hatch accessed via a ladder on the aft bulkhead. Access to a shared head on the starboard side.
FOREPEAK CABIN HEAD Located on the starboard side aft of the forepeak cabin. Access from the forepeak cabin as well as the galley. Teak grating on sole. Vacuuflush fresh water flush head. No holding tank. Cameo white Corian wash basin, mirror and telephone type shower head mounted to bulkhead. Sea water foot pump. Electric sump pump for shower. Towel, paper and soap holders. Locker outboard.
PORT GUEST HEAD Located opposite the Forepeak Cabin Head. Same as Fore Peak Cabin head except access from port cabin only. Stainless steel holding tank for head. Electric pump to discharge holding tank.
GALLEY Located on the starboard side immediately aft of the Forepeak Cabin Head with door to head forward and main saloon aft. Stainless steel, 4 burner, gimballed propane stove with pot holders, oven and grill. Flame failure protection on burners. Gas shut-off cock next to stove. Remote control gas shut-off and leak detector in galley with control switch, alarm and warning light. Air extractor hood over stove. Microwave oven behind stove. White Formica and Corian counter tops. Double stainless steel sinks inboard. Water tank vents drain to sinks. Corian tops to sinks. Sea water spout with foot pump to sink. Drip dry dish locker. Garbage bin. Side access fridge aft of stove. Top access freezer inboard of fridge. Additional freezer under cabin sole. Clothes dryer aft of sinks. Lockers inboard and outboard.
PORT GUEST CABIN Located on the port side opposite the galley. Accessed from the main saloon port side forward. Double lower bunk. Single upper pullman bunk. Lockers outboard and above. Hanging locker forward. Access to private head forward.
MAIN SALOON Straight settee to Starboard with lockers and audio/video center outboard. Drawers and locker under settee. Crockery locker forward next to liquor locker. Coffee table. "L" shaped dinette to port with additional seating in as many as 4 single chairs inboard. Table expands to seat more people. Wine locker under table. Lockers and bookshelves outboard. Fridge and ice-maker aft and outboard. Wet locker next to companionway.
AFT PORT GUEST CABIN Located immediately aft of the saloon on the port side. Single bunk with single pullman bunk above. Lockers inboard with small vanity. Access to shared head aft. Head shared with master cabin aft.
AFT PORT GUEST CABIN and MASTER CABIN HEAD Located aft of the Aft Port Guest Cabin and as described earlier except access from Aft Port Guest Cabin and Master Cabin. Separate stall shower inboard.
NAVIGATION STATION Located aft of the saloon on the starboard side. Forward facing. Surrounded by navigation and communication instruments. Electrical panel inboard.
CAPTAIN'S CABIN Located aft of the navigation station and on the starboard side. Single lower bunk with upper pullman bunk. Hanging locker aft.
CAPTAIN'S DAY HEAD Same as other heads except the access is either from the forward end of the Captain's Cabin or as a day head from the walkway back to the aft master cabin.
MASTER CABIN Located aft with access from a walkway on the starboard side. Centerline queen bed. "L" settees port and starboard. Vanities port and starboard. Lockers outboard port and starboard. Hanging lockers forward port and starboard.
24 V DC.
! battery set 24V Ah at for gneral service.
Engine and SSB batteries 24V Ah
Battery capacity meter fitted for both groups of batteries.
Switch for parallel between service and engine batteries.
Shore supply two times 230V and one times 115V.
Inverter 24VDC to 220V AC.
Generator Kohler 1800rpm 20Kw (replaced in 2004)
220V AC and 24V outlets at chart table and in heads, one watertight in cockpit and one on Dorade box forward of the mast.
Spreader deck lights.
2 boom lights.
Tricolor ligths on masthead.
Windes and light on masthead.
Automatic Lights in hanging lockers.
Pheostat control for lights in saloon.
Flexible chart light at navigatino station.
1 light over each bert.
Red dome night-lights over galley and chart table.
Indirect lights in saloon and in owner's cabin.
Raymarine ST60+ Tridata.
Raymarine ST60+ Wind.
Raymarine RN300 GPS.
Raymarine RL70C Chart Plotter and Radar.
Raymarine RAY430 Loud Hailer.
Raymarine RAY54E VHF
Furuno Navtex NX300
ICOM IC-M700 Pro SSB Radio Telephone.
AFT COCKPIT FWD BULKHEAD
Raymarine ST60+ Graphic.
Raymarine ST60+ CH Wind.
Raymarine ST60+ Wind.
Raymarine ST60+ Graphic.
Raymarine ST60+ Rudder angle.
Suunto compass on steering wheel pedestal.
PORT SIDE COCKPIT NEXT TO PEDESTAL
Raymarine Smart Pilot ST6002 Autohelm Series.
Jumbo 20/20 displays.
Perkins 6 cylinder, 225 HP Interc ooled Turbocharged (new in 2000).
Electric level gauges.
1904 litres Fuel capacity in 4 stainless steel tanks.
3 blad folding propeller, new in 2013.
Bow thrusters, not fitted.
Triple spreader masthead rig supported by babystay and runners.
Harken track for fully battend mainsail.
Boom with 2-3 reefs.
1 Aluminum spinnaker boom.
1 carbon spinnakers boom.
1 aluminum jockey pole.
Harken hydaulic headsail furler.
Hydraulic power pack for headsail furler.
Hydraulic power pack for winches.
Navtec solid rod standing rigging.
Wire running backstays.
Wire hydraulic babystay.
Navtec rod backstay hydraulically powered.
Wire inner forestay hydraulically powered.
Hydraulic system with control unit in cockpit with gauges for backstay, boombang, babystay, inner forestay, mast jack.
Mainsail (replaced in 2004) - Cruising, fully battened Dacron.
Furling genoa, Dacron.
Spinnakers- Asymmetric, 0.5oz, 3/4 oz.,1.5oz.
Blue spreayhood over entrance hatch.
Blue sprayhood over forward end of aft cockpit.
Blue Sun awning covering entire boat or selected areas as required.
Upholstery for deck, cockpit in blue fabric matching boat color.
Auxilary engine for tender, 25 HP Evinrude.
Compressor and diving bottles, not included in sale.
Horseshoe lifebouys with lights mounted on stern rail.
PLUMBING AND VENTILATION
Water capacity 317 gallons in 3 stainless steel tanks.
Water tank level guage fitted in each tank with read out in aft cockpit for fuel and inside for water.
Hot and cold pressure water for galley, heads and deck water.
Fridge and freezer run on 220V.
Watermaker 47 gallons/hour.
Two manual bilge pumps, one below, one in cockpit.
Electric bilge pump, manual and automatic control.
Deck wash/fire pump with connection.
