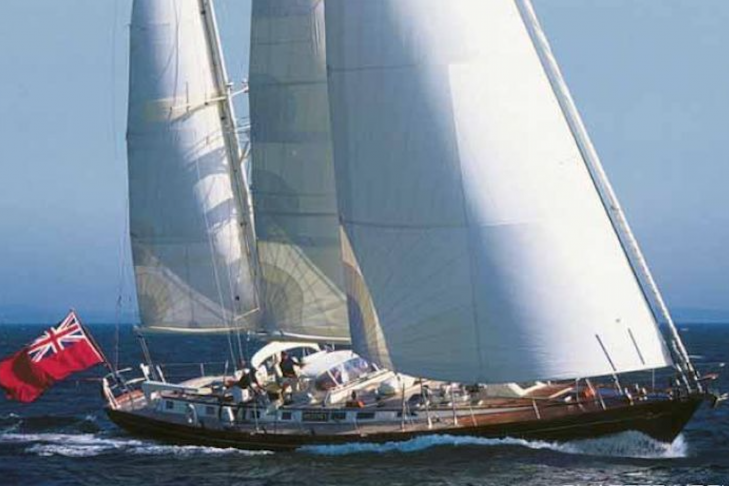

Swan 76 MELINKA for sale with Yeoman Yachts
Swan 76 for sale:


Purchased by the present family in 1994, they liked the Swan 76 model so much, the family bought a second Swan 76 keeping her at the same time in the southern hemisphere.

In 1995 a major refit was carried out at the Hinckley Yacht Yard in Rhode Island. The refit, in part, included extending the hull and deck to 80’, replacing the teak decking and winches, adding the burgundy leather upholstery, air conditioning and water maker. New North working sails were added in 2021, and in 2023 all new communication and navigation electronics were added.

The present captain has been with MELINKA since 2006 and he has maintained her to the exacting standards you will see should you decide to view her.

MELINKA is in spectacular condition, she is a rare find. Viewings are highly recommended.

  • Year:

  • Model:

    Swan 76
  • Location:

    Portsmouth - Rhode Island - USA
  • Price:

    $ 695,000 USD

Swan 76 Specifications

  • Model:
    1981 Swan 76
  • Hull Number:
  • LOA:
    76 ft 4 in
  • Beam:
    19' 6 in
  • Draft:
    8 ft 6 in min - 13 ft 6 in max
  • Displacement:
    98,700 lbs
  • Ballast:
    24,000 lbs
  • Keel:
  • Engine:
    Mercedes Benz 200hp

    For enquries please contact:

    Keith Yeoman - Swan Brokerage

    Keith Yeoman

    Yeoman Yachts

    T: +1 401 846 1090


Fin keel and centerboard with 8’ 6” draft board up (13’ 6” board down).

Solid fiberglass hull.

Blue Awlgrip paint (2011).

Gold sheer stripe.

Double white waterline stripe.

Skeg hung rudder,

Transom extension in 1995, completed at Hinckley, extended the hull to 80‘.

Hundested drop down bow thruster with new seals (2023).


Center cockpit with varnished teak back rest and teak helm seat.

Cored fiberglass deck with teak overlay.

Teak decking (1995).

Varnished teak toe rail.

5 x pair of stainless steel grid covered deck drains going to below waterline scuppers.

Stainless steel stem head fitting with 2 x Delrin anchor rollers.

Stainless steel bow and stern rails.

Outboard bracket on stern rail starboard side.

Stainless steel stanchions, extra tall.

Lifeline gates port and starboard.

1 x 19 plastic covered double lifelines.

4 x pair mooring cleats each with their own fairlead.

Fairleads incorporated into stem head fitting for mooring lines.

1 x Lewmar 3500 hydraulic windlass on deck, vertical mount.

1 x Lewmar 3500 electric windlass, on deck, vertical mount.

Electric up and down foot switches for each windlass.

Deck access anchor locker forward with cowl vent.

Deck access locker for lazarette.

Chainplates all stainless steel.

Inner forestay chainplate.

“D” padeyes strategically located on deck.

Swim ladder.

Crane on aft deck S to lift tender.

7 x deck light prisms.

1 x sliding deck hatch on foredeck.

15 x opening Plexiglass deck hatches.

12 x opening ports on side of coachroof.

2 x opening ports in cockpit foot well.

6 x fixed windows.

2 x stainless steel liferaft cradles forward of companionway.

1 x pair stainless steel genoa tracks, each with 2 fairlead blocks on adjustable cars.

1 x pair stainless steel staysail tracks, each with 1 fairlead block on adjustable car.

Main traveler located forward of the companionway with Harken car.

7 x turning blocks at mast partners.

Stainless steel wheel with elkhide cover.

On wheel pedestal are: engine controls, engine readouts, Ritchie compass, ruder angle indicator, propellor and bow thruster controls, manual rig hydraulic panel.

Cockpit table.

1 x pair double headsail sheet turning blocks.

Stainless steel Simpson davits, model 300 (300kg lifting capacity), with extending arms incorporated into stern rail.


All Lewmar, replaced in 1995.

Near mast:

1 x #65, 3speed.

2 x #65, 2 speed, ST.

2 x #65, 2 speed, ST, hydraulic.

Aft coachroof:

2 x #55, 2 speed, ST.


2 x #58, 2 speed, ST.

1 x #54, 2 speed, ST, P side for centerboard.

1 x #66, 3 speed, ST, hydraulic.

2 x #111, 3 speed, ST, hydraulic, primary.

2 x #77, 3 speed, ST, hydraulic, secondary.

On main mast

1 x #54, 2 speed, ST.

On mizzen mast

3 x #44, 2 speed, ST.

1 x #48, 2 speed, ST.

General  Arrangement


Sleeps 6 guests, 2 in each of 3 sleeping cabins, each with ensuite head and shower. Captain’s cabin, plus crew cabin for 4 more crew. 5 heads.

Varnished, hand rubbed, Burmese teak interior with teak and holly cabin sole and vinyl overhead panels.

Burgundy leather upholstery (1995).

Crew Cabin

Located in the bow.

2 mirror image cabins, 1 to P and 1 to S, each with 2 single over/under bunk beds.

Locker and drawer under lower bunk.

Lockers forward with space to hang clothes on hooks.

Reading lights for each bunk and overhead lights.

Crew Mess

Located immediately aft of crew cabins.

Dinette to S with VHF, intercom and stereo outboard.

Icemaker under dinette aft.

Locker under dinette fwd.

Steps to overhead sliding hatch and deck access.

Work area to P with storage area under countertop.

Forward are 2 drawers and a locker.

Aft is washer/dryer and water maker controls.

Crew Head

Located aft of the dinette and on the S side.

Electric flush head.

Teak grating in floor.

Sink and mirror.

Lockers outboard and under sink.


Located P side aft of crew mess.

“U” shaped.

Off white Corian counter tops with fiddle rails.

4 x burner propane Force 10 stove with oven outboard (2010) with air extractor fan.

Kitchen Aid, microwave (2011) fwd.

Fridge and freezers 220volt with (2019) compressors.

2 x top load freezers.

1 x top and side load fridge.

Double stainless steel sinks.

Lockers fwd, aft, inboard and outboard.

Spice racks.

Captain's Cabin

Located opposite the galley.

Double pullman bunk outboard.

Shelving fwd and outboard.

Ensuite head fwd.

Electric flush head inboard.

Telephone type shower.

Teak grating in floor.

Sink outboard.

2 x foot pedal pumps.

Lockers outboard.

Between the captain’s cabin and galley is the ship’s main electrical panel.

Moving aft is a wet locker.

Main Saloon

Located aft of the galley and captain’s cabin with access on center.

Large “U” shaped dinette to P.

Dining table with 2 folding leaves.

Drink fridge in table base.

Shelving and lockers outboard to P.

Flag locker aft.

“L” settee to starboard with coffee table.

Entertainment system outboard of settee.

Samsung TV.

Yamaha audio/video.

6 x drawer type racks to store CDs etc.

Radio locker aft accessed from the settee, inboard and aft in nav station.

Drawers and locker fwd and midship.

Companionway steps aft to cockpit.

Navigation Station

Located down 2 steps from the main saloon and on the S side.

Forward facing desk with lid and storage under.

Surrounded with navigation and communication electronics.

Fuel and water management and fuel transfer.

From the nav station is a corridor accessing the engine room door and guest cabins.

Engine Room

Access located near nav station, close to centerline and aft of engine space.

Near standing headroom.

Starboard Guest Cabin

Located immediately aft of the nav station.

2 x single bunks, one over the other.

Lockers fwd.

Drawer under lower bunk.

Lockers aft.

Ensuite head aft.

Electric flush head.

Stall shower inboard.

Sink outboard.

Corian counter tops.

Lockers outboard and aft.

Port Guest Cabin

Located immediately opposite the S guest cabin.

2 single bunk beds, one over the other.

Bookshelf inboard.

Seat fwd.

Lockers fwd.

Hanging locker aft of bunks.

Ensuite head.

Electric flush head.

Stall shower inboard.

Sink outboard.

Corian counter tops.

Lockers outboard and aft.

Master Cabin

There is a corridor between the P and S guest cabins aft to the master cabin.

Single bunk to P and to S.

Lockers outboard of each bunk.

4 x drawers under each bunk.

Floor locker each side.

Bookshelves aft.

Hanging locker fwd to S.

Side tables for each bunk with 2 drawers under.

Aft facing vanity on centerline with swing out seat, desk and lifting lid.

4 drawers in vanity.

TV aft and S.

Stereo outboard and S.

Chelsea clock and barometer.

Master Cabin Head

Located fwd and P of cabin.

Electric flush head.

Sink outboard.

Corian counter tops.

Lockers outboard, aft and under sinks.

Teak grating in floor.

Stall shower fwd.

Drawer aft.


Mercedes-Benz 200hp engine (1981) with approximately 12,000 hours.

3 x blade Hundested multi pitch propellor.

Hundested propellor pitch indicator system (2023).

2 x lobster pot deflectors at shaft strut.

820 gallons of fuel.

Approximately 6 gallons per hour fuel consumption.

Speed under engine approximately 10 knots.

Plumbing and Ventilation

Washer/Dryer (2008).

Watermaker (1995).

Water capacity 550 gallons.

60 gallons per hour water maker.

Deck shower.

City fresh water connection.

Central air conditioning (1995).

5 x varnished teak dorade boxes each with chrome cowl vent.

1 x dorade vent with cowl on coachroof.

1 x pair mushroom vents at companionway.


House batteries X16 8D (2022).

Engine and 20KW start batteries X4 8D (2023).

Mastervolt 24/100 battery charger.

Northern Lights 20kw generator (approximately 11,000hrs).

Northern Lights 12 kw generator (approximately 11,000hrs).

Aqua Signal bow and stern lights incorporated into the bow and stern rails.

2 x 50amp, 125/250volt, deck shore power plugs.


All new by Cay Electronics (2023)

Furuno GPS Navigator with DGPS.

NavNet TZTouch3 16” Multi-Touch MFD.

NavNet TZTouch3 12” Hybrid-Control MFD.

NXT 24” Solid State Doppler Radar w/Target Analyze.

Furuno PG500R Rate Compass.

ZG100 GPS Antenna, 10Hz.

19” Computer monitor.

Actisense NMEA2000 to PC USB connection.

B&G H5000, Hercules CPU.

6 x B&G H5000, graphic color display, 2 at helm, 2 at nav station, 1 in captain’s cabin, 1 in master cabin.

B&G H5000 analogue magnified AWA.

B&G H5000 analogue AWA 360degree.

B&G H5000 analogue rudder angle.

B&G Nemesis 9 color display.

B&G H5000 bronze flanged speed sensor.

B&G bronze depth/temperature transducer.

B&G H5000 3D motion sensor.

B&G WS310 wired wind sensor.

B&G H5000 autopilot with controls at nav station and at helm.

Precision 9 compass.

RF25N rudder feedback, N2K.

Icom M510 VHF class D DCS.

Icom M500 wireless interface box, NMEA 2000 hailer.

Icom Command MIC IV.

Bose outdoor speakers mounted on stern rail.

KEP chart plotter screen at P companionway.


Aluminum mast and mizzen mast.

Aluminum main and mizzen booms.

Main mast with double spreaders.

Masts painted off white (2011).

Halyard bail at base of main mast.

Double tracks on fwd side of mast each with adjustable bayonet fittings for 2 spinnaker/whisker poles.

Trysail track.

Mainsail track with Antal bat cars.

Lazy jacks.

Deck lights under main mast lower spreaders.

Foredeck light on front of mast.

Sailing red over green lights each side of main mast.

Stainless steel discontinuous standing rod rigging (new 2011 and inspected 2022).

Running rigging replaced as needed.

Staysail halyard.

2 x pole topping lifts.

2 x headsail halyards.

2 x spinnaker halyards on bails.

2 x inner headsail halyard sheeves and inner forestay attachment.

Hydraulic headsail roller furler.

Pig stick for club burgee.

Foor steps at top of mast.

Reckmann hydraulic headsail roller furler with twin groove foil.

Single spreader mizzen mast.

Mizzen sail track with Antal cars.

Lazy jacks.

Deck lights under mizzen spreaders and on fwd side of mast.

Radar dome fwd side of mizzen mast.

Double horns fwd side of mizzen mast.

Pig stick on mizzen mast.

2 x mizzen staysail halyards.

1 x mizzen mainsail halyard.

2 x carbon spinnaker poles.

Manual Navtec hydraulic vang and backstays.


North full batten mainsail (2021).

North full batten mizzen sail (2021).

North roller furling 120% genoa (2021).

North hank on staysail.

Additional Equipment

2 x 8 man liferafts.

2 x Man Overboard Modules.

406 EPIRB with GPS.

Sun awnings.

Cushions for sun deck aft od coachroof.

14’ Novurania hard bottom inflatable tender (2008).

50hp Yamaha outboard.

Cockpit cushions (2022).

1 x 140lb CQR anchor.

1 x 105lb CQR anchor.

Drink cooler.

Chelsea clock and barometer.

Dodger over foredeck sliding hatch.

Dodger over companionway hatch.

Bimini over cockpit.


The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Contact Us

1000 characters left

Keith Yeoman

Yeoman Yachts

T: +1 401 846 1090


Yeoman Yachts LLC

Newport, Rhode Island, United States

This email address is being protected from spambots. You need JavaScript enabled to view it.
