Sold
Swan 40 sold by Yeoman Yachts:

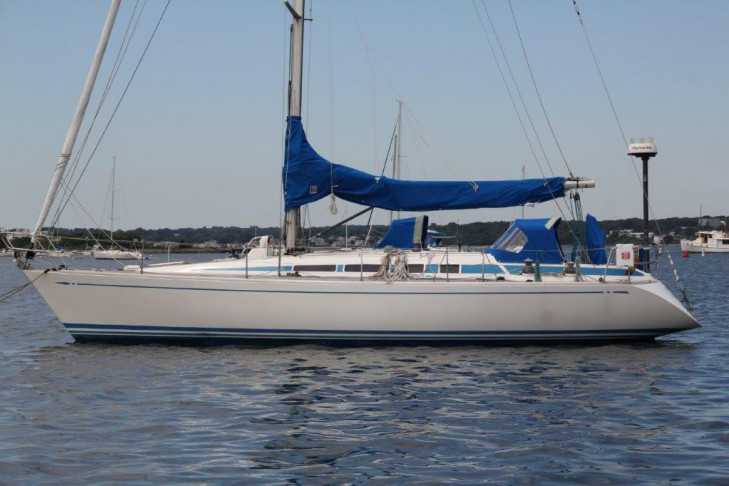

RAINMAKER

RAINMAKER is one of the last of the Swan 40s built. In 2020 a new Nanni diesel engine was installed. RAINMAKER also boasts upgraded electronics and cruising and racing sails. Add to this the meticulous way in which the current owner has maintained this Swan 40 and you end up with one special boat.

Add your personal affects and groceries and you are ready to go. Viewings are highly recommended. I know you will not be disappointed.

  • Year:

    1996
  • Model:

    Swan 40
  • Location:

    Jamestown, RI USA

Sold - Swan 40 RAINMAKER

  • Model:
    1996 Swan 40
  • Hull Number:
    40.143
  • LOA:
    40 ft 3 in
  • Beam:
    12 ft 11 in
  • Draft:
    7 ft 2 in
  • Displacement:
    19400 lb
  • Ballast:
    6990 lb
  • Keel:
    Fin
  • Engine:
    Nanni N4-38

Hull

White gel coat, solid Fiberglass hull with top hat stringers inside for increased stiffness

Double blue waterline stripes

Single blue sheer stripe

Fin keel with bulb

Spade rudder (new 2022)

Rudder bearings (new 2022)

Fold down transom

All seacocks serviced 2022

Deck

Closed cell foam cored Fiberglass deck

Teak overlay

Stainless steel stem head fitting with single anchor roller

Stainless steel bow and stern rails

Anchor windlass (installed 2022)

1 x 19 wire stainless steel double lifelines

Lifeline gates port and starboard and in stern rail to access fold down transom

1 x pair genoa tracks

Line car pullers for each genoa car

2 x 6 gang Lewmar line stoppers, 1 each side of companionway

6:1 mainsheet with a 4:1 fine tune

Mainsail traveler track

Carbon fiber radar antenna post aft starboard with gimballing radar antenna

“D” hooks in cockpit for harness safety lines

Lazarette locker with access under helm seat

2 x cockpit lockers

6 x opening ports

5 x deck hatches

2 x dorade vents forward with additional mushroom vent

Stainless steel rail over dorade vents

Stainless steel handrails either side of coachroof

Stainless steel handrails at companionway

Winches

All Lewmar self-tailing, 2 speed

2 x #44 utility at companionway

2 x #54 primary either side of cockpit

2 x # 48 secondary either side of cockpit

GENERAL ARRANGEMENTS

ACCOMMODATIONS

Sleeps 2 in each of the 2 sleeping cabins, plus 1 in the port pilot berth and 2 more on the settees for a total of 7. Hand rubbed, varnished, Burmese teak interior with solid teak and laminated teak trim. Vinyl off white overhead Velcroed panels. Varnished teak and holly cabin sole (varnished 2022).

Forward Cabin

Located in the bow

Access to the anchor locker forward

“V” berth

Seat aft to starboard

Hanging locker aft to starboard

Forward Head

Located on the port side aft of the forward cabin

White gel coated Fiberglass lower unit to half height

Jabsco manual head

Sink with pressure hot and cold water

Telephone type shower

Lockers outboard and under sink

Shower tray with sump pump

Soap dish

Main Saloon

Located aft of the forward cabin and forward head

Centerline table with drop leaves port and starboard

Straight settee port and starboard

Lockers behind back rest of each settees

Pilot berth to port

Lockers and shelves to starboard

Blue leather upholstery

Navigation Station

Located aft of the main saloon on the starboard side

Forward facing

Lifting desk lid to access paper chart storage

Drawers and locker forward

Surrounded by navigation and communication electronics as well as the electrical panel

Galley

Sea Frost side loading fridge (new 2017)

Alpes Inox 3 x burner propane stove with oven with exhaust hood

Double stainless steel sinks with pressure hot and cold water

Foot pump

Drawers and trash container forward

Lockers outboard

Aft Master Cabin

Located in the stern with access via the galley

“V” type berth with large single bunk each side

Lockers and shelving outboard each side

Hanging locker forward

Mirror on forward bulkhead

Aft head

Located on the starboard side with access only from the aft cabin

White gel coated Fiberglass lower unit to half height

Jabsco manual head with “Y” valve

Sink with pressure hot and cold water

Telephone type shower

Lockers outboard and under sink

Shower tray with sump pump

Soap dish

Engine

Nanni N4-38 diesel engine (new 2020)

Transmission ZF12M-2R (rebuilt 2020)

Cutlass bearing (new 2022)

Single lever Ultra Flex engine control (new 2022)

Engine control panel next to helm starboard side

Engine control cables (new 2022)

Max prop (serviced 2022)

Plumbing and Ventilation

Hot and cold pressure water in head and galley

Jabsco manual head forward and aft

“Y” valve in aft head

Sump pump for shower tray for each head

Extractor fan for each head

Ventilation fans in forward cabin, main saloon and aft cabin

Isotemp water heater

Black water holding tank for aft head

Electrical

Pro Mariner, Pro Nautic 12.40P, battery charger (new 2018)

220volt outlets

2 x 12volt outlets

Electrical panel (new 2022)

Remote battery control DCC 4000 Megatronic

110volt outlets

1 x alternator (new 2020)

1 x alternator (rebuilt)

House batteries (new 2020)

LED lighting below deck (new 2022)

Coax cable in mast (new 2022)

Electronics

At navigation station:

Raymarine Axiom 9" screen (new 2018)

Raymarine Quantum radar (new 2018)

Raymarine, Ray 60, VHF (new 2018)

VHF antenna (new 2022)

Kenwood stereo

At helm:

Raymarine EV200 autopilot (new 2018)

Raymarine AIS (new 2018)

Raymarine screen (new 2018)

Suunto compass

Cockpit speakers

2 x Raymarine read outs (new 2018)

Ramarine MIC (new 2018)

Wind wand (new 2022)

RIGGING

Aluminum anodized triple spreader Nautor mast with additional trysail track

Aluminum anodized Nautor boom

Stainless steel Navtec rod rigging (new 2009)

Insulator on backstay for SSB antenna

Navtec hydraulic backstay and boom vang with manual control panel at helm

Running rigging (mostly new 2017)

Lazy jacks on boom

Harken roller furling for headsail

Harken double track foil for headsails for racing

Hall, carbon fiber spinnaker pole

Harken stand up blocks at mast partners

Split backstay for easy access onto transom steps

SAILS:

Aside from the working sails, the majority of the sails have been stored since 2012

North Sails mainsail, 3DL, 2 reefs, full battens (new 2012)

North Sails genoa, medium #1, 3DL (2008)

North Sails genoa, light #1, 3DL (2009)

North Sails, yankee, 3DL (2009)

North Sails, #4, Kevlar (2009)

North Sails, storm jib (2009)

North Sails, storm trysail (2009)

North Sails, asymmetric code 3A (2009)

North Sails, code 0A (2009)

ADDITIONAL EQUIPMENT

Spare racing floor boards

CQR 48lb anchor, 200' line

Fortress racing anchor

Small Danforth backup anchor

2 x folding deck seats

Sun awning

Stockburger clock, barometer, temperature, and relative humidity

Canvas:

All blue Sunbrella

Main sail cover (2017)

Spray hood over companionway (2017)

Dodger forward end of aft cockpit (2020)

Wheel and pedestal cover (2017)

Lifesling 2

MOM8-A Switlik

Emergency heaving line

Lee cloths for each settee, pilot berth and aft bunks

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
