SWAN LAKE

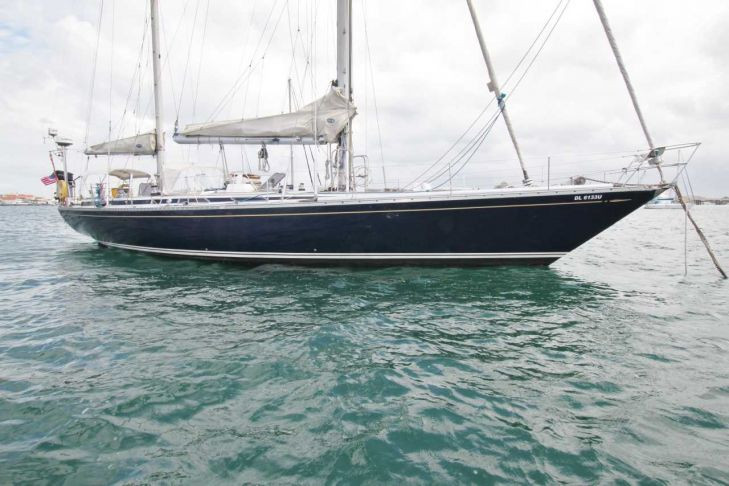

SWAN LAKE is one of the very few Swan 57s who's transom was extended by an additional 3 feet. This allows for considerably more storage space in the lazarette. SWAN LAKE is equipped for expedition type sailing and cruising. Her inventory is impressive. SWAN LAKE has been around Cape Horn four times, twice with the present owner. Captain and mate maintained. She has been refit and thoroughly maintained to ensure safe and reliable cruising in the most adventurous of conditions and situations. Ready now for any type of cruising. Extensive refits and historical cruising record is available upon request.

{gallery}brokerage/57.027.Swan.Lake.Exterior{/gallery}

HULL

Solid fiberglass hull
Extended hull by an additioanl 2 feet
Fin keel
Spade rudder with partial skeg
Blue painted hull (2007)
Gold sheer stripe
Double white waterline stripe
Micron International bottom paint (2013)
Epoxy barrier coat

DECK

Fiberglass cored deck with teak overlay
Teak overlay (new 2003)
Extended deck aft with deck access to large lazarette
Aluminum anodized toe rails (new 2003)
Stainless steel stem head fitting with twin stainless steel anchor rollers
Stainless steel bow rail
Stainless steel stern rail with gate
Stainless steel stanchions with gates port and starboard
Stainless steel 1 x 19 double lifelines
Mooring cleats foreward, aft and midship
Mooring fairleads aft with rollers
Lofrans Falcon electric windlass with chain gypsy and rode winch, 24volt 1500watt (2003)
Up and down foot switches for windlass located on the foredeck as well as the cockpit at the helm station
2 x stainless steel mast pulpits with rollers to store extra mooring rode
2 x deck light prisms
Main sheet track
2 x genoa sheet tracks
2 x staysail sheet tracks
Double turning blocks for headsail sheets
2 x cockpit tables (1 large and 1 small)
Stainless steel radar antenna post aft
Cockpit speakers
Cockpit shower, hot and cold water
Manual bilge pump in cockpit
Stainless steel wheel with elkhide cover
Swim ladder
WINCHES
1 x #44, Lewmar, self tail, 2 speed main halyard on mast
1 x #16, Lewmar, 2 speed outhaul on boom
1 x #48, electric, Harken, self tail, 2 speed, with 2 sets of foot switches (port and starboard) halyard and reef lines (2003)
2 x #55, Lewmar, 3 speed
2 x #66.2, electric, Harken, self tail, 2 speed primary (2003)
2 x #65, Lewmar, self tail, 2 speed secondary
1 x #44, Lewmar, self tail, 2 speed
2 x #30, Lewmar, 2 speed on mizzen mast
1 x #16, Lewmar, 2 speed on mizzen mast
1 x #46, Lewmar, 2 speed, self tailer main sheet

{gallery}brokerage/57.027.Swan.Lake.Interior{/gallery}

INTERIOR

GENERAL ARRANGEMENT

Sleeps 8 in 4 separate sleeping cabins plus 2 more in the main saloon for a total of 10. Varnished (2012), hand rubbed, Burmese teak interior. Teak and holly cabin sole (recoated 2012). Most of the upholstery is a tan ultra suede

FOREPEAK CABIN

"V" berth for two. Access to anchor locker forward. 2 x fans. Storage under the bunks. Separate air conditioner with digital controls.

FORWARD HEAD PORT SIDE

Located aft of the forward cabin. Accessed from the port guest cabin. Jabsco manual head.Teak floor grate. Sink. Telephone type shower. Hot and cold pressure water.

FORWARD HEAD STARBOARD SIDE

Located opposite the port head. Accessed from the starboard guest cabin. Electric head. Stainless steel sink. Hot and cold pressure water. Telephone type shower. Teak grate.

PORT GUEST CABIN

2 single bunk beds. Drawers and hanging locker forward. Storage outboard of each bunk and under lower bunk.

STARBOARD GUEST CABIN

2 single bunk beds. Drawers and hanging locker forward. Storage outboard of each bunk and under lower bunk. Air conditioning digital controls

MAIN SALOON

Located aft of the forward guest cabins. "U" shaped dinette to starboard. Table with fold out leaves forward and aft. Raritan icemaker in the table base. Lockers and shelves outboard. Storage behind starboard settee backrest. Storage and tankage under dinette seat. Straight settee to port. Storage out board of settee backrest.
Fridge with holding plate forward of settee. Liquor locker with glasses storage forward. LG, LCD, 32" TV over settee. 3 Hella turbo fans. Tankage under the floor

GALLEY

Located aft of the saloon on the port side. "U" shaped. 4 burner Eno propane stove with oven and pot holders. Drawers forward. Lockers outboard and aft. Electrolux microwave. Crockery and glassware storage outboard. Top and side access fridge 24volt and 220volt. Top access freezer 24volt and 220volt. Top access dry storage
Double stainless steel sink. Hot and cold pressure water. Foot pump salt water
Foot pump fresh water. Dish draining rack over sinks. Pantry space aft. Spice rack
Exhaust fan. Gas detector.

NAVIGATION STATION

Located aft of the saloon and opposite the galley. Foward facing. Chart storage.
Surronded with navigation and communication electronics, DC and AC elecrical panels. Wet locker aft. Companionway on the centerline separates the nav station and galley. Engine room under companionway steps.

MASTER CABIN

Located aft via an access walkway on the starboard side. Double settee forward to starboard with storage under. Single bunk to starboard. Single bunk to port. 2 hanging lockers forward. Air conditioning with digital controls. Generator space aft separates bunks. 4 fans. Storage between bunks forward of generator. Storage outboard of each bunk. Vanity midships and forward. Access to aft end of engine.

MASTER CABIN HEAD

Located forward of the master cabin on the port side. Electric head. Stainless steel sink. Hot and cold pressure water. Telephone type shower. Teak grate. Exhaust fan. Electric and manual sump pump.

ENGINE

Volvo TMD31 130HP 4 cylinder engine (new 1997 overhauled 2012)
3 blade feathering Vari propeller (2003)
Spare 3 blade feathering Max propeller
Single lever engine control
3 x diesel fuel tanks under saloon floor
Spare parts for engine including starter motor, water pump, belts and filters

PLUMBING and VENTILATION

1 x dorade vent on deck forward with stainless steel protection
2 x dorade vents, 1 each side and forward of the forward companionway
1 x dorade vent port side of companionway
6 deck hatches
3 x opening ports
Electric bilge pump
Manual bilge pump
Pressure hot and cold water throughout
Offshore Marine Laboratories water maker, 120 liters per hour, 220volt
3 x stainless steel water tanks locaed under the saloon floor
Water heater, 220volt and off engine

ELECTRICAL

New wiring (2008)
Westerbeke 10KW generator (new 2007)
2900 hours on genset
Sound box for generator
Generator start panel at nav station
60amp, 24volt alternator off the engine to house batteries
12 volt alternator off engine to engine start battery
24volt to 12volt inverter for navigation instruments
LED lighting throughout
Foot lighting
Xtender Multimode Powercenter, XTH 5000-24 inverter providing 110volts (2008)
Studer RCC-03 remote control for inverter at nav station
Mastervolt battery charger 12/35-3 (2008)
Mastervolt BTM111, battery monitor
1 x 30amp, 125volt deck plug inlet
1 x 50amp, 125volt/250volt deck plug inlet
110volt and 220volt outlets
Generator and shore power provide 220volts to the boat
12volt outlet
8 x 6volt Trojan T-105 lead acid batteries (new 2011 and 2012) in series to provide 24volts, 450 amp hours
2 x 12volt Freedom DF2000 gel cell batteries, 230amp hours
1 x 12volt Freedom DF2000 gel cell engine start battery, 115 amp hours

ELECTRONICS

AT HELM
Raymarine ST8001 autopilot
Simrad AP26 autopilot
Sailomat wind autopilot
Lowrance HDS10 chart plotter, radar and sonar
5 x Raytheon ST80 screens, 2 of which are analogue wind
Constellation compass at pedestal
AT NAVIGATION STATION
AIS Navico NAIS-300
Raytheon ST8001 display
Raytheon ST60 Tridata display
Metoman electronic barometer
Probe Interface forward looking depth sounder
Raymarine RL80C radar and chart plotter
Electronic tank monitor for diesel tanks
Various plugs for computer and phone
Flatron E2240S LG flatscreen for computer and chart plotter
ICOM, IC-M700 SSB
ICOM, IC-M402 VHF
Iridium 9555 satelite phone
Inmarsat, Thrane and Thrane satelite phone
PC Advantech, Intel Atom 1.6GHz (N270) computer
2 x ICOM, IC-M34 hand held VHFs
NAPCO motion detector alarm
Simrad 406 EPIRB (new 2012)
Ibratele, Iridium satelite phone used with Ericsson W3X broad band router
Skyeye weather software
Weatherfax 2000 weather software
Bluetraker boat tracking
WI-FI antenna, Bitstorm Bad Boy Extreme

RIG

Ketch rig
Aluminum main mast with two sets of sreaders
Mast steps to mast head
Trisail track
Deck lights under lower spreaders
Aluminum mizzen mast
Mast steps to mast head
Aluminum booms
Walden boom brake under main boom
Aluminum spinnaker pole x 2
Aluminum spinnaker strut
Reckmann roller furling for the headsail
Harken roller furling for the staysail
Lazy jacks with Stackpack type main and mizzen sail covers
Stainless steel rod upper shrouds main mast (new 2003)
1 x 19 stainless steel standing rigging (new 2008)
Dye form rigging for headstay and inner forestay
1 x 19 stainless steel standing rigging for the mizzen mast
7 x Antal line stoppers on main mast

SAILS

All by Hood Sailmakers
110% Yankee, roller furling (new 2012)
Staysail, roller furling (new 2008)
Mainsail, full batten with Harken Bat Cars (new 2008)
Mizzen (new 2008)
Storm jib
Storm trisail

ADDITIONAL EQUIPMENT

Zodiac, 6 person raft with hard cannister (new 2008)
Plastimo, 8 person raft in soft valice
BBQ, LPG, portable grill
Cockpit cushions
Sun matresses
Horse shoe life ring
Plastimo Lifesling
Bombard, 3.8m with soft bottom
Mercury 25HP outboard engine
Mercury 15HP outboard engine
Transom platform
LG 32" flat screen TV in main saloon
Dickinson diesel cabin heater in saloon
Kenwood AM/FM/DVD stereo with surround sound
Samsung subwoofer
Bronze Schatz clock
Bronze Schatz barometer
Delta 45kg anchor
CQR anchor
Fortress anchor
90 meters, 12mm chain
90 meters rode
Spare parts

CANVAS

Dodger over forward companionway (new 2012)
Bimini over cockpit (new 2012)
Awning from dodger to bimini
