ANDROMEDA

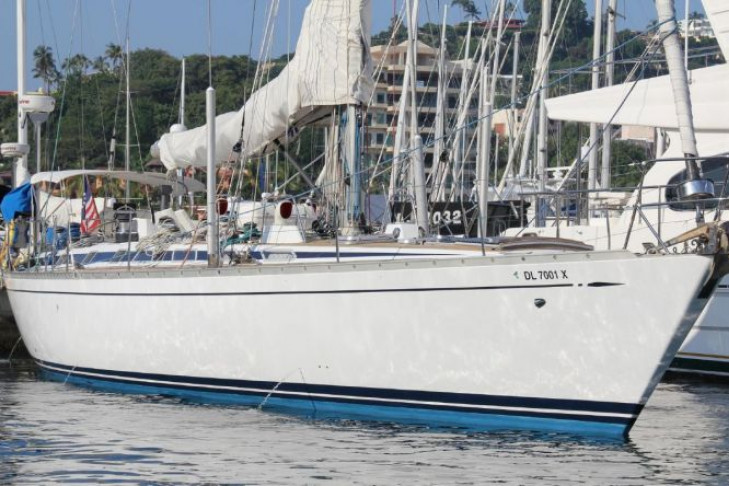

This Swan 59 has a 2 foot transom extension that was put on during the time of construction at Nautor in 1985. Full time captain. Exceptionally well equipped and maintained. Many recent upgrades. Also ready for the next Trans Pac Race.

{gallery}brokerage/59.005.Andromeda.Exterior{/gallery}

HULL

Solid Fiberglass hull
Recent White Awlgrip hull paint
Fin kell
Spade Rudder
Stainless steel boarding ladder on transom

DECK

Fiberglass cored deck with teak overlay
Awlgrip painted shine areas of deck with Swan blue stripe
Bridge deck teak replaced (2002)
Mid and aft cockpit teak deck replaced (2010)
2 x aft cockpit seat lockers
1 x propane locker aft port
1 x lazarette locker aft of aft cockpit
Aluminum toe rails
Stainless steel stem head fitting w/2 rollers
2 x anchor line hause pipes
Electric anchor windlass located under deck w/deck hatch access and chain gypsy and rode winch w/up and down foot switches
3 x pair mooring cleats
3 x pair fairlead chocks
Stainless steel bow and stern rails
Double stainless steel 1 x 19 lifelines
Life line gates port and starboard
Gate in stern rail
8 x fixed ports (new glass 2010)
2 x deck prisms fwd of mast
1 x deck prism aft cockpit sole
2 x pair of genoa tracks on side decks
2 x pair of sheet fairleads on inner genoa track
1 x pair of sheet fairlead on outer genoa track
3 x deck fuel fills, 1 for each fuel tank
Stainless steel hand rails at companionway
Companionway from forward cockpit
Partial companionway from aft cockpit with stainless steel handrail
Dodger over forward companionway (new 2009)
Dodger over aft cockpit
Bimini over helm area (new 2009)
Mainsail traveller track over bridge deck
Wheel steering w/elkhide cover
4 x winch handle holders in aft cockpit
Cockpit cushions
Bridge deck cushions w/backrests
2 x pair turning blocks for headsail sheets
1 x pair turning blocks for spinnaker sheets
Radar antenna mast at transom to starboard, gimballed
Antenna mast at transom to port
12 x turning blocks at mast partners
Flag holder
10 x Lewmar line stoppers
Clutch w/turning block for roller furling line port aft

WINCHES

All Lewmar, self tailing, 2 speed and chrome finished except where noted
From forward working aft:
1 x pair #48, spinnaker halyard
1 x pair #55, genoa halyard
1 x #55, mainsail halyard
3 x #46, utility (2 to starboard and 1 to port)
1 x pair #55, reef lines
1 x pair #70 primary, 3 speed w/2 coffee grinders and multiple switch overs
1 x pair #40 mainsail traveller
1 x pair #48, mainsheet
1 x pair #65, electric secondary
1 x pair #55, checkstay

{gallery}brokerage/59.005.Andromeda.Interior{/gallery}

INTERIOR

GENERAL ARRANGEMENT

Sleeps 6, 2 in each of the 3 sleeping cabins plus 2 in the forepeak and 2 in the main saloon for a total of 10. 3 heads. Varnished, hand rubbed, Burmese teak veneered furniture throughout. Teak and holly cabin sole.

FOREPEAK

2 x pilot bunks to starboard
Storage bins under lower bunk
Steps on bulkhead to overhead hatch to access the deck
Stainless steel rail for line storage

FORWARD HEADS

Immediately aft of the forepeak are 2 heads, 1 to port and 1 to starboard
Access to the forepeak from the port head
Door between the heads
Door aft of each head to access the guest cabins
Manual head in each
1 holding tank for both heads
Hot and cold pressure water in each
Telephone type shower in each
Teak grating in each

GUEST CABINS

Mirror image guest cabins, 1 to port and 1 to starboard
2 single bunks, 1 above the other in each
Hanging locker in each
Drawers in each
Independent air conditioning controls in each

MAIN SALOON

"U" shaped settee around a dining table
Double bench seat near centerline
Lockers and shelving outboard
"L" settee to port around a coffee table
Entertainment system to port
Ice maker and liquor locker aft to port
Independent air conditioning controls

GALLEY

Located aft and to port of main saloon
2 x Grunert fridges, 1 top access and 1 side access
1 x Grunert freezer
Refrgeration run off 110 volt and engine compressor
1 x Force 10, 4 burner stove w/oven
Trash container
Lockers throughout
Double stainless steel sink
Storage under sinks
Hot and cold pressure water

NAVIGATION STATION

Located opposite the galley
Forward facing
Chart desk with lid to access chart storage
Surrounded with navigation and communication electronics as well as the AC and DC electrical panels
Wet locker aft
Companionway on centerline

AFT MASTER CABIN

Accessed on the starboard side via a passageway from the navigation station
Centerline queen bed w/2 curved settes, 1 to port and 1 to starboard
Drawers fwd and starboard
Lockers fwd port and starboard
Vanity starboard
Chart storage locker fwd
Companionway fwd to deck hatch
Independent air conditioning controls

MASTER CABIN HEAD

Located fwd and to port of the master cabin
Separate stall shower
Manual head
Teak grating
Pressure hot and cold water
Lockers outboard
Sump pump

ENGINE AND HYDRAULICS

ENGINE

Volvo Penta TAMD31L (new 2002)
130 hp
Fully serviced 2010
New turbo 2010
Racor twin fuel filters w/pressure gauge
Engine controls and instruments in cockpit starboard of wheel
3 blade Max prop

HYDRAULICS

Navtec Hydraulics for the following:
Boom vang
Backstay
Inner forestay
Mainsail outhaul

PLUMBING AND VENTILATION

PLUMBING

MT Fresh water maker, makes 12 to 14 gallons per hour
1 x deck water fill for 4 water tanks
4 X Stainless steel fresh water tanks
Hot and cold pressure water throught the yacht
Hot and cold pressure water shower in aft cockpit
Additional fresh water via a filter at galley
Salt water foot pump at galley
Salt water outlet at bow
Manual bilge pump in aft cockpit
Manual bilge pump in saloon
Manual bilge pump in fwd starboard cabin
Electric bilge pump

VENTILATION

8 x opening ports (new glass 2010)
2 x dorade vents either side of mast partners w/stainless steel protection rails
1 x dorade vent fwd of mast w/mushroom vent and 24 volt outlet
2 x dorade vents either side of companionway with stainless steel protection rails
1 x mushroom vent over galley

ELECTRICAL

Northern Lights 7.5kw generator w/1200 hrs (new 2002)
Freedom 25 Heart Interface battery charger/inverter
Heart Interface Link 2000
1 x 110 volt, 60hz, shore power deck plug
1 x 110 volt, 60hz, shore power deck plug for air conditioning
1 x 220 volt, 50hz, shore power deck plug
1 x 50 amp shore power cord with splitter (new 2010)
110 volt outlets
24 volt outlets
Hella turbo fans in each cabin
150 amp alternator off main engine for house batteries
70 amp alternator off main engine for starter battery
2 x banks of 4 house batteries (total 600 amp hours in 8 batteries) 6 volt in series gel cell creating 24 volts (new 2010)
1 x 12 volt, Lifeline, gel cell generator battery
2 x 12 volt, in series, giving 24 volt, gel cell engine start batteries
Navigation instruments operate off the 24 volt house batteries via a converter to produce 12 volts

ELECTRONICS

At DECK AND COCKPIT

B&G Hydra 2000 speed/depth/wind display fwd companionway
B&G magnified wind fwd companionway
2 x B&G Hydra 2000 displays fwd end of aft cockpit
B&G wind display fwd end of aft cockpit
B&G Hercules autopilot display at wheel
B&G Hydra 2000 speed/depth/wind display at wheel
Raymarine C90/W chart plotter/radar wheel (new 2010)
SUUNTO compass at wheel
Echo pilot fwd looking port of wheel

At NAVIGATION STATION

NAVIGATION
B&G analogue wind direction
B&G Hercules 2000 speed/depth/wind display
Raymarine C120/W chart plotter/radar (new 2010)
Northstar 952X GPS Navigator
Echopilot forward facing sounder
Hook ups for laptop computer
Inclinometer
COMMUNICATION
Thrane and Thrane TT3022D Capsat w/sat phone (new 2010)
ICOM IC-M710 MF/HF Marine receiver w/headphones
ICOM IC-M504 VHF radio (new 2010)

RIGGING

Aluminum Nautor Mast (tall version)
3 x sets of spreaders
Spreader tips replaced (2010)
Deck lights on lower set of spreaders
Horn on lower spreader
Stainless steel Navtec rod rigging (new 2010)
Insulated backstay for SSB antenna
Inner forestay
Baby stay
Checkstays
Running rigging (mostly new 2010)
Aluminum boom
Aluminum strut
Carbon fiber spinnaker pole w/cover
Windex at mast head
Harken roller furling headsail
Harken mainsail luff track w/roller bearing cars

SAILS:

Ullman, full batten mainsail (2009), triradial, Carbon/Technora w/dacron Taffeta each side, 2 deep reefs
Ullman, 140% roller furling #2 (2009), triradial, Carbon/Technora/Dacron Taffeta each side
UK, 155%, Tape Drive jibtop (2010), Carbon/Technora
Code 2A Asymetrical 0.75oz spinnaker (2010)
Code 4A Asymetrical 1.5oz spinnaker (2010)
Heavy air staysail w/reef (older than 2003, very light use)
Storm trysail (older than 2003, very light use)

EQUIPMENT

Avon, West Marine 8ft RIB (new 2008)
Yamaha 4hp outboard engine (new 2008)
1 x CQR 75 lbs
180’ of ½” chain
1 x Fortress aluminum anchor FX 85
30’ chain and 180’ ¾” rode>
250ft anchor chain
EPIRB Satellite 406 identifies ANDROMEDA (new 2010)
Wind influenced autopilot on transom (requirement of the Hawaii Race)
Switlik 6 man raft in canister located over companionway
2nd 6 man life raft in valise (inspected through 2012)
Man Overboard Pole w/strobe light (new 2010)
Life sling (new 2010)
11 x life jackets
11 x harnesses/life jackets w/CO2 canisters
Sunbrella mainsail cover
Fusion stereo w/I-pod connector
Fusion stereo remote control port side of wheel
Stereo speakers in aft cockpit
Sony TV in saloon
Phillips DVD in saloon
SPARES
Engine starter motor
Alternator
Salt water pump
Bilge pump
